- Automatic machine for the preparation and filling of flexible three-seam containers in laminate.
- Compact chassis with high rigidity painted with paint with high resistance heat treatment. (Optional Stainless Steel AISI 304).
- Made with mostly sheets, laser cut or water jet, which provide extremely high precision, achieving maximum alignment in compounds (knee, etc.) and general assembly of the same. Also allowing a more precise centering of the sheet and greater stability in the Machine.
- The parts in contact with products are built in AISI 304 Stainless Steel.
- Pneumatically operated vertical and horizontal jaws. In the case of the latter, both the front and the rear have movement, thus allowing the container not to rest on them at the moment it moves.
- The sealing is carried out through a hot clamp with a temperature regulated by PLC.
- Taco reading photocell for printing centering.
- Built-in electrical and command board on the same machine with operator panel. Easily and comfortably accessible. In electrical components, the marks used are front-line, and
It has a PLC for the coordination of movements. - At the compressed air inlet the machine has an FRL (regulator filter and lubricator).

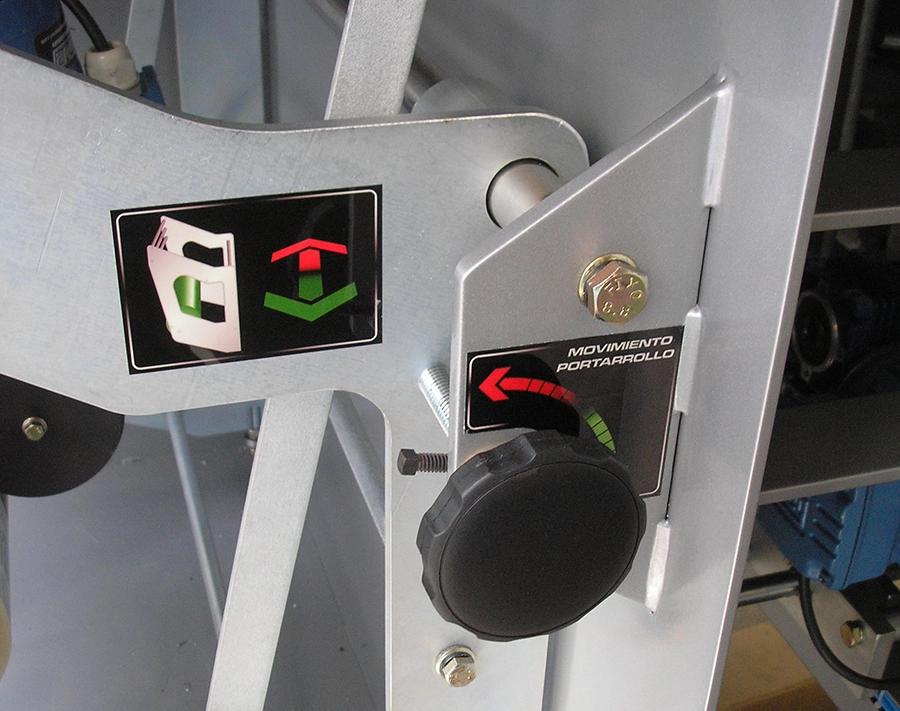

- Rocker, brake and roll support mounted on the same system that allows easy regulation in the centering of the sheet. The constant tensioning of the same is achieved through the rocker arm – brake (named above).
- The machine includes a sheet forming spout made of Stainless Steel. With low opening angle cone for good product access at the top. Measure to agree with the client, according to their specific requirements. The change is done in an agile way, through 2 knobs that adjust it.
- TOUCH SCREEN operator panel; incorporated in the front of the machine, from where its movements can be controlled; in addition to varying temperatures.
- The traction of the sheet is carried out through 2 floating tracks that press it on the forming pipe; allowing speed and precision in the location of the sheet for the formation of the sachet (package). Built in lightweight, high-strength material, to optimize acceleration and deceleration for sheet displacement.
- They have a system of elastic steel sheets that adjust it against the forming pipe proportionally. Pneumatic opening and closing system, accessible drive, to speed up the change of forming blades and shoulders (it works even without electrical energy).
